130mm*130mm BGA X Ray Inspection Machine X8800 With 5-Axis Control System

Product Categories

SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 130mm130mm BGA X Ray Inspection Machine X8800 With 5Axis Control System
Brand: Wellman
Price: 1 USD

Brand Name : Wellman

Model Number : X8800

Certification : CE FDA

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Type : Closed, microfocus

Max tube voltage : 90kV

Max tube current : 200μA

Focal spot size : 5μm

Effective area : 130mm*130mm

Contact Now

Microfocus X-Ray Inspection System X8800 for BGA Analysis

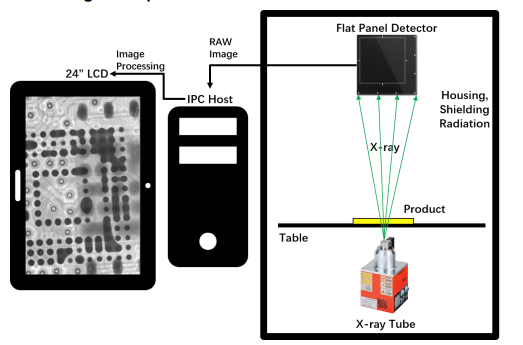

Working Principle

System Advantages

Japan Hamamatsu X-ray tube - world's best closed type X-ray tube with over 10,000 hours lifetime, maintenance-free
New generation 5" HD digital flat panel detector (FPD)
FPD can tilt ±45° and rotate 360° for comprehensive inspection
Automatic navigation window - table moves to clicked position
400*400mm work table with 10KG load capacity
Speed adjustable 5-axis linkage system for precise control
Programmable inspection procedures for automated batch inspection
Intuitive operation with quick defect detection - only 2 hours training required

Hardware Parameters

X-ray source

Flat panel detector

Table

Equipment

Safety Features

Radiation leakage	No leakage, international standard: ≤1μSv/h
Lead glass observation window	Transparent lead glass window shields radiation to observe the inner status
Window and back door safety interlock	Once users open the window or back door, X-ray tube will power off immediately. When the window or back door is open, users can't turn on the X-ray
Electromagnetic safety switch	Lock once the X-ray is on, users can't open the observation window
Emergency stop	Next to the operation position, press to power off
Tube protection	User can't leave the software if you don't close the X-ray tube

Application Examples
